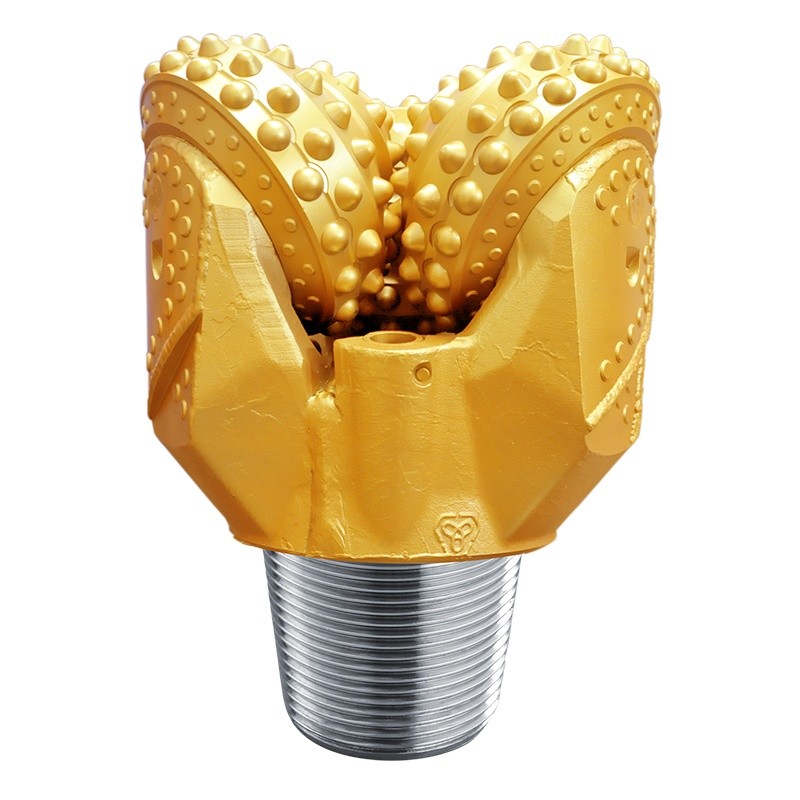

12-1/4 Inch Outer Diameter IADC 715 solid Carbide API Mining Rotary Tri-Cone Drill Bit

Product Categories
Suzhou Energy Tool Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

12-1/4 Inch Outer Diameter IADC 715 solid Carbide API Mining Rotary Tri-Cone Drill Bit

  • 1
  • 2
  • 3

Brand Name : ENG

Model Number : 715R

Certification : API, AISI, ISO

Place of Origin : Suzhou, China

MOQ : 1 piece

Price : USD 1000-6000 piece

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5000PCS/Year

Delivery Time : 8 WEEKS

Packaging Details : Wooden Box

Diameter : 12 1/4'' (311mm)

Bearing Type : Roller-Ball-Roller-Thrust Button/Sealed Bearing

Circulation : Jet Air

Connection thread type : 6 5/8'' REG

Bit weight : 98 Kg

Contact Now



    12-1/4" IADC 715 Carbide API Mining Rotary Tri-cone Drill Bit





  • CUTTING STRUCTURE
  • Spherical on gage, double spherical on inner rows.
    Designed for high compressive strength, hard and abrasive formations, such as granite, limestone, sandstone, dolomite.
    Compressive strength: 37,000-44,000 psi/255-303 MPa



12-1/4 Inch Outer Diameter IADC 715 solid Carbide API Mining Rotary Tri-Cone Drill Bit12-1/4 Inch Outer Diameter IADC 715 solid Carbide API Mining Rotary Tri-Cone Drill Bit











Product Specifications
Diameter  12 1/4"  311mm
Bearing Type  Roller-Ball-Roller-Thrust Button/Sealed Bearing
Drilling cycle type  Jet Air
Connection thread ty  6 5/8'' REG
Operation Parameters
 Rotary speed (r/min)  60-90 r/min
 Weight on Bit (KN)  49,000-73,500lb/22.2-33.3T
Air Back Pressure

 29-58 psi/0.2-0.4 MPa











About Us



        12-1/4 Inch Outer Diameter IADC 715 solid Carbide API Mining Rotary Tri-Cone Drill Bit





































Certifications



12-1/4 Inch Outer Diameter IADC 715 solid Carbide API Mining Rotary Tri-Cone Drill Bit









Package&Shipping



12-1/4 Inch Outer Diameter IADC 715 solid Carbide API Mining Rotary Tri-Cone Drill Bit

12-1/4 Inch Outer Diameter IADC 715 solid Carbide API Mining Rotary Tri-Cone Drill Bit









Applications



12-1/4 Inch Outer Diameter IADC 715 solid Carbide API Mining Rotary Tri-Cone Drill Bit







FAQ



Q: You are a trading company or manufacturer ?
A: Manufacturer, We are a 100% real factory with over 20 years' experience in water/oil/gas wells Drill Bits.

Q: How about your products ?
A : Both of tricone bits and PDC bits strictly conform to API 7 requirements and ISO9001. we will do kinds inspections before delivery, also cover for after-sales service.

Q: Package Methods ?
A: Normally wooden case, also can be steel box; can be customized if need.

Q: Payment Terms ?
A: we accept T/T, L/C, Paypal, Western Union, etc.

Q: Can I visit your factory ?
A: Yes, we welcome you to our factory all the time, will send invitation letters if need; also can show our workshop and warehouse online.
